Your endpoint must respond with HTTP 200 to acknowledge a successful receipt. If the request fails due to a network error, exceeds 30 seconds to complete or returns any status code other than 200, the system will retry the request up to 10 times with exponential backoff. Retries are timed at first after 5 sec, then 2 min, 30 min, 2 hours and then the rest every 12 hours. After the final attempt, the event will be discarded.

Webhook event Payload

  • application_user_id The application user ID you’ve provided when getting the access token
  • timestamp Time of the event
  • event_type
    • record_change new or updated data received from the provider
    • provider_integration_created user has integrated with a provider
    • provider_integration_deleted user integration has been deleted
  • metrics metric types involved with the event
  • activity_types activity types if any involved with the event
  • provider_slug provider triggering the event
  • earliest_record_start_at earliest timestamp of records involved with the event in ISO 8601 format
  • latest_record_end_at latest timestamp of records involved with the event in ISO 8601 format

Example Payload

  • record_change
[
  {
    "application_user_id": "User1",
    "timestamp": "2025-04-15T13:33:55.271331177Z",
    "event_type": "record_change",
    "metrics": ["calories_burned_active", "distance", "steps"],
    "activity_types": ["sedentary", "walking"],
    "provider_slug": "garmin",
    "earliest_record_start_at": "2025-04-15T09:30:00Z",
    "latest_record_end_at": "2025-04-15T13:33:00Z"
  },
  {
    "application_user_id": "User2",
    "timestamp": "2025-04-15T13:33:55.271331177Z",
    "event_type": "record_change",
    "metrics": ["calories_burned_active"],
    "activity_types": ["walking"],
    "provider_slug": "garmin",
    "earliest_record_start_at": "2025-04-15T09:30:00Z",
    "latest_record_end_at": "2025-04-15T13:33:00Z"
  }
]
  • provider_integration_created
[
  {
    "application_user_id": "test",
    "timestamp": "2025-08-29T13:21:10.703300387Z",
    "event_type": "provider_integration_created",
    "provider_slug": "oura"
  }
]

Signature

Each webhook event is signed using an HMAC-SHA256 signature for verification. The signature is included in the X-Body-Signature header. The signature is computed by signing the raw request body as-is using a shared secret key. You can retrieve this key from the admin console. To verify authenticity:
  1. Compute the HMAC-SHA256 hash of the request body using the shared key.
  2. Compare the result to the value in the X-Body-Signature header.

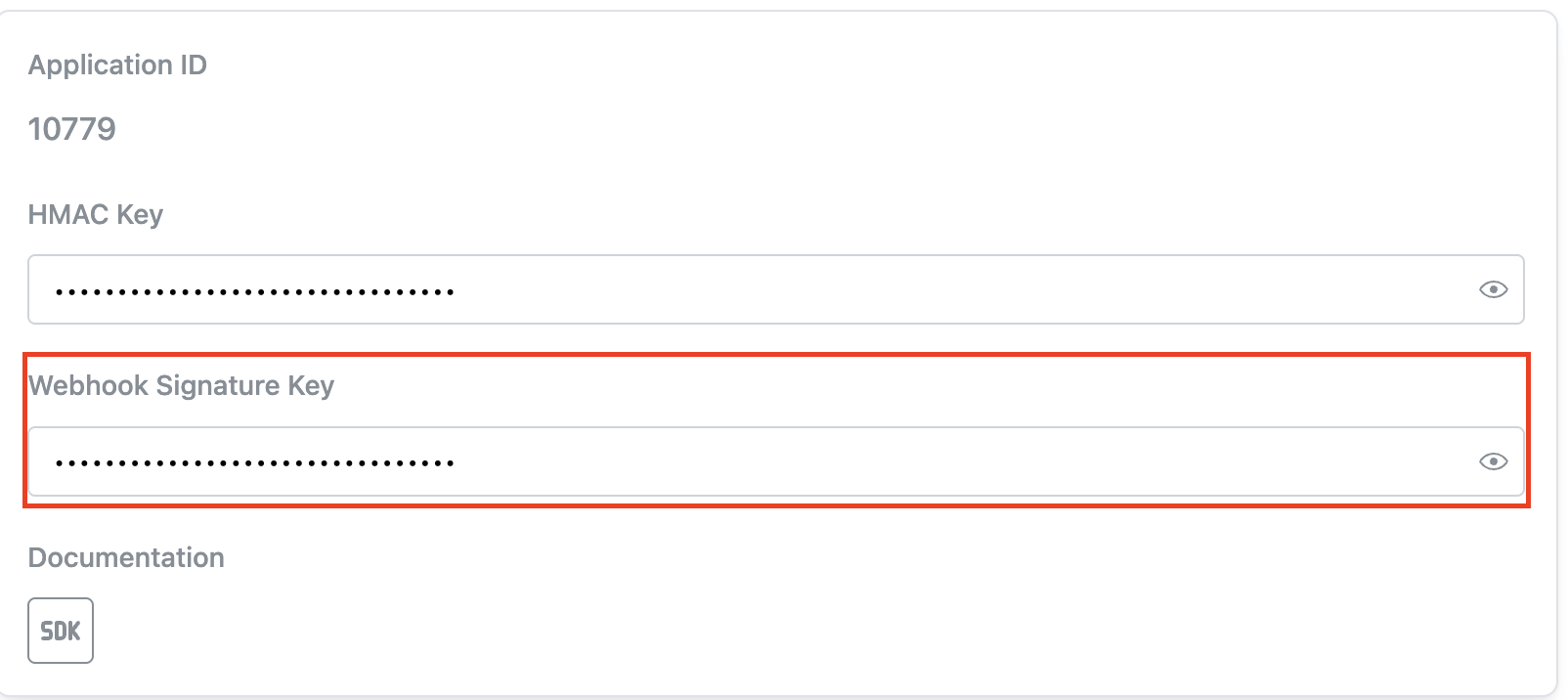

Console Client Webhook Pn

Code Examples

package main

import (
	"crypto/hmac"
	"crypto/sha256"
	"encoding/hex"
	"encoding/json"
	"fmt"
	"io"
	"net/http"
	"time"
)

// PushEvent represents a webhook event from the health data provider
const hmacKey = "HMAC_KEY_FROM_ADMIN_CONSOLE"

type PushEvent struct {
	ApplicationUserID     string    `json:"application_user_id"`      // ID of the application user
	Timestamp             time.Time `json:"timestamp"`                // Event timestamp
	EventType             string    `json:"event_type"`               // Type of event
	Metrics               []string  `json:"metrics"`                  // List of metrics
	ActivityTypes         []string  `json:"activity_types"`           // List of activity types
	ProviderSlug          string    `json:"provider_slug"`            // Provider identifier
	EarliestRecordStartAt time.Time `json:"earliest_record_start_at"` // Start of data range
	LatestRecordEndAt     time.Time `json:"latest_record_end_at"`     // End of data range
}

func main() {
	http.HandleFunc("/", func(w http.ResponseWriter, r *http.Request) {
		// Verify HMAC signature
		signature := r.Header.Get("X-Body-Signature")
		if signature == "" {
			http.Error(w, "Missing signature", http.StatusBadRequest)
			return
		}

		// Read and verify the request body
		body, err := io.ReadAll(r.Body)
		if err != nil {
			http.Error(w, "Failed to read body", http.StatusInternalServerError)
			return
		}

		// Calculate HMAC
		hm := hmac.New(sha256.New, []byte(hmacKey))
		hm.Write(body)
		if signature != hex.EncodeToString(hm.Sum(nil)) {
			http.Error(w, "Invalid signature", http.StatusUnauthorized)
			return
		}

		// Parse events
		var events []PushEvent
		if err := json.Unmarshal(body, &events); err != nil {
			http.Error(w, "Invalid JSON", http.StatusBadRequest)
			return
		}

		// Process events
		for _, event := range events {
			fmt.Printf("Received event: %+v\n", event)
		}

		w.WriteHeader(http.StatusOK)
		w.Write([]byte("OK"))
	})

	fmt.Println("Starting server on port 8000")
	http.ListenAndServe(":8000", nil)
}
const crypto = require("crypto");

const HMAC_KEY = "HMAC_KEY_FROM_ADMIN_CONSOLE";

class PushEvent {
  constructor(data) {
    this.application_user_id = data.application_user_id;
    this.timestamp = new Date(data.timestamp);
    this.event_type = data.event_type;
    this.metrics = data.metrics;
    this.activity_types = data.activity_types;
    this.provider_slug = data.provider_slug;
    this.earliest_record_start_at = new Date(data.earliest_record_start_at);
    this.latest_record_end_at = new Date(data.latest_record_end_at);
  }
}

const server = require("http").createServer((req, res) => {
  if (req.method !== "POST") {
    res.statusCode = 405;
    res.end("Method not allowed");
    return;
  }

  let body = "";
  req.on("data", (chunk) => (body += chunk));
  req.on("end", () => {
    // Verify signature
    const signature = req.headers["x-body-signature"];
    if (!signature) {
      res.statusCode = 400;
      res.end("Missing signature");
      return;
    }

    // Calculate HMAC
    const hmac = crypto.createHmac("sha256", HMAC_KEY);
    hmac.update(body);
    if (signature !== hmac.digest("hex")) {
      res.statusCode = 401;
      res.end("Invalid signature");
      return;
    }

    // Parse events
    let events = JSON.parse(body).map((data) => new PushEvent(data));

    // Process events
    for (const event of events) {
      console.log("Received event:", event);
    }

    res.statusCode = 200;
    res.end("OK");
  });
});

server.listen(8000);
<?php

class PushEvent {
    public string $application_user_id;
    public DateTime $timestamp;
    public string $event_type;
    public array $metrics;
    public array $activity_types;
    public string $provider_slug;
    public DateTime $earliest_record_start_at;
    public DateTime $latest_record_end_at;
}

const HMAC_KEY = 'HMAC_KEY_FROM_ADMIN_CONSOLE';

function handleRequest() {
    // Verify HMAC signature
    $signature = $_SERVER['HTTP_X_BODY_SIGNATURE'] ?? '';
    if (empty($signature)) {
        http_response_code(400);
        echo 'Missing signature';
        return;
    }

    // Read and verify request body
    $body = file_get_contents('php://input');
    if ($body === false) {
        http_response_code(500);
        echo 'Failed to read body';
        return;
    }

    // Calculate HMAC
    $hmac = hash_hmac('sha256', $body, HMAC_KEY);
    if ($signature !== $hmac) {
        http_response_code(401);
        echo 'Invalid signature';
        return;
    }

    // Parse events
    $events = json_decode($body, true);
    if (json_last_error() !== JSON_ERROR_NONE) {
        http_response_code(400);
        echo 'Invalid JSON';
        return;
    }

    // Process events
    foreach ($events as $eventData) {
        $event = new PushEvent();
        $event->application_user_id = $eventData['application_user_id'];
        $event->timestamp = new DateTime($eventData['timestamp']);
        $event->event_type = $eventData['event_type'];
        $event->metrics = $eventData['metrics'];
        $event->activity_types = $eventData['activity_types'];
        $event->provider_slug = $eventData['provider_slug'];
        $event->earliest_record_start_at = new DateTime($eventData['earliest_record_start_at']);
        $event->latest_record_end_at = new DateTime($eventData['latest_record_end_at']);

        echo "Received event: " . print_r($event, true) . "\n";
    }

    http_response_code(200);
    echo 'OK';
}

// Handle the request
handleRequest();
import hmac
import hashlib
import json
from datetime import datetime
from http.server import HTTPServer, BaseHTTPRequestHandler
from typing import List, Optional


class PushEvent:
    """Represents a health data push event from a provider."""
    def __init__(self, data: dict):
        self.application_user_id: str = data['application_user_id']
        self.timestamp: datetime = datetime.fromisoformat(data['timestamp'])
        self.event_type: str = data['event_type']
        self.metrics: List[str] = data['metrics']
        self.activity_types: List[str] = data['activity_types']
        self.provider_slug: str = data['provider_slug']
        self.earliest_record_start_at: datetime = datetime.fromisoformat(data['earliest_record_start_at'])
        self.latest_record_end_at: datetime = datetime.fromisoformat(data['latest_record_end_at'])


class RequestHandler(BaseHTTPRequestHandler):
    """Handles incoming webhook requests with HMAC verification."""

    HMAC_KEY = "HMAC_KEY_FROM_ADMIN_CONSOLE"

    def _verify_signature(self, body: bytes, signature: Optional[str]) -> bool:
        """Verifies the HMAC signature of the request body."""
        if not signature:
            return False
        h = hmac.new(self.HMAC_KEY.encode(), body, hashlib.sha256)
        return signature == h.hexdigest()

    def do_POST(self):
        """Handles POST requests with webhook events."""
        # Read request body
        content_length = int(self.headers.get('Content-Length', 0))
        body = self.rfile.read(content_length)

        # Verify signature
        if not self._verify_signature(body, self.headers.get("X-Body-Signature")):
            self.send_error(401, "Invalid signature")
            return

        # Parse and process events
        try:
            events = [PushEvent(data) for data in json.loads(body)]
            for event in events:
                print(f"Received event: {event.__dict__}")
        except (json.JSONDecodeError, KeyError, ValueError):
            self.send_error(400, "Invalid JSON")
            return

        # Send success response
        self.send_response(200)
        self.end_headers()
        self.wfile.write(b"OK")


def main():
    """Starts the HTTP server."""
    server = HTTPServer(('', 8000), RequestHandler)
    server.serve_forever()


if __name__ == "__main__":
    main()
import { createHmac } from "crypto";
import { createServer, IncomingMessage, ServerResponse } from "http";

// Configuration
const HMAC_KEY = "HMAC_KEY_FROM_ADMIN_CONSOLE";
const PORT = 8000;

// Type definitions
interface PushEvent {
  application_user_id: string;
  timestamp: Date;
  event_type: string;
  metrics: string[];
  activity_types: string[];
  provider_slug: string;
  earliest_record_start_at: Date;
  latest_record_end_at: Date;
}

// Helper functions
const verifySignature = (
  body: string,
  signature: string | undefined
): boolean => {
  if (!signature) return false;
  const hmac = createHmac("sha256", HMAC_KEY);
  hmac.update(body);
  return signature === hmac.digest("hex");
};

const parseEvents = (body: string): PushEvent[] => {
  return JSON.parse(body).map((data: any) => ({
    ...data,
    timestamp: new Date(data.timestamp),
    earliest_record_start_at: new Date(data.earliest_record_start_at),
    latest_record_end_at: new Date(data.latest_record_end_at),
  }));
};

// Server setup
const server = createServer((req: IncomingMessage, res: ServerResponse) => {
  // Only accept POST requests
  if (req.method !== "POST") {
    res.statusCode = 405;
    res.end("Method not allowed");
    return;
  }

  // Collect request body
  let body = "";
  req.on("data", (chunk) => (body += chunk));

  req.on("end", () => {
    try {
      // Verify request signature
      if (
        !verifySignature(
          body,
          req.headers["x-body-signature"] as string | undefined
        )
      ) {
        res.statusCode = 401;
        res.end("Invalid signature");
        return;
      }

      // Parse and process events
      const events = parseEvents(body);
      events.forEach((event) => console.log("Received event:", event));

      // Send success response
      res.statusCode = 200;
      res.end("OK");
    } catch (error) {
      // Handle parsing errors
      res.statusCode = 400;
      res.end("Invalid request");
    }
  });
});

// Start server
server.listen(PORT, () => {
  console.log(`Server running on port ${PORT}`);
});
